Descriptions
Rated Voltage:7.4V DC
Output power:5W/1W
Battery type:Li-ion battery
Battery capacity:1800mAh
Earpiece / MIC type:2 Pin K-Type
Antenna“:SMA-Female
Working temperature:-20~+50 Degrees Celsius
Antenna Impedance:50 ohm
Weight:230g
Dimension ( LXWXH )
60 X 38 X 120 mm (Not Antenna )
Specification
Frequency stability:± 2.5ppm
Modulation:F3E
Max frequency deviation:<= 5kHz(Wide)/<= 2.5kHz(Narrow)
Emission current:<=1.5A
CTCSS / DCS:0.7 ± 0.1kHz(Wide)/0.4 ± 0.1kHz(Narrow)
Spurious Radiation:<=7.5µW
Intermediation Distortion:<10%
Intermediation sensitivity:8-12mv
Adjacent channel selectivity:<= 65dB(Wide)/<= 60dB(Narrow)
Modulation character:6 dB per fold frequency patch
Sensitivity:-122dbm (12dB SINAD)
Audio Power:1W
Audio Distortion:<= 10%
Blocking:>= 85dB
Spurious rejection:>=65dB

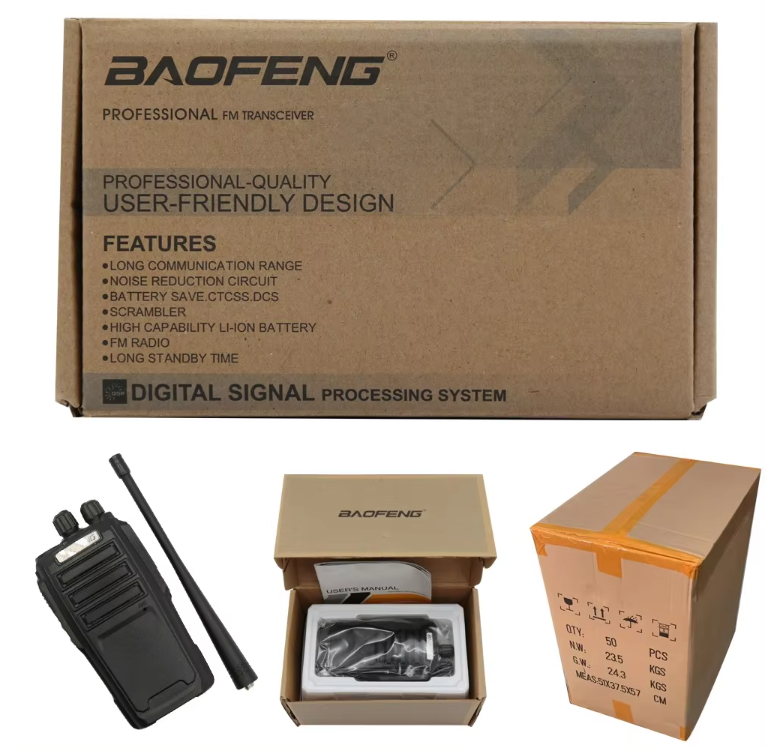

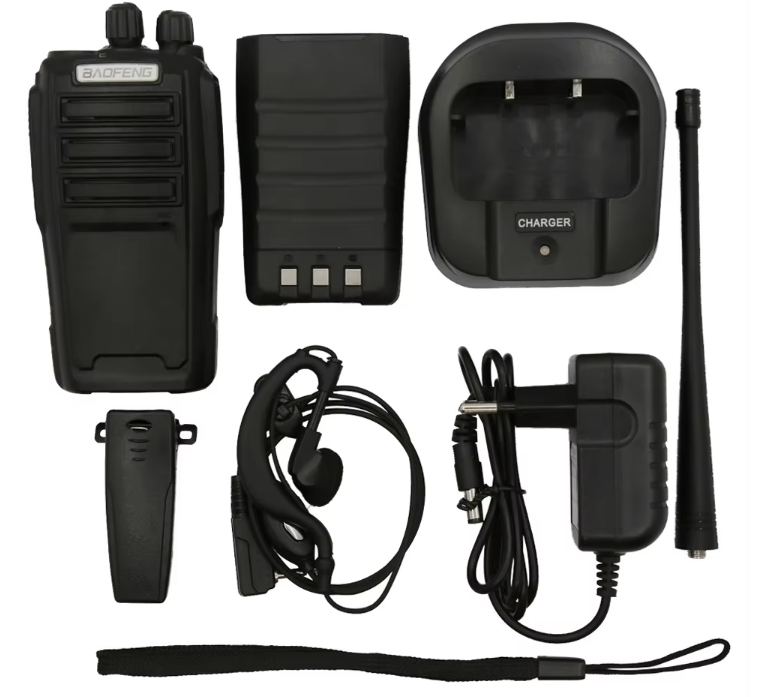

Packing

1 X Radio
1 X Antenna
1 X Ac Charger (round or flat plug)
1 X Thick Battery (Li-ion 7.4V )
1 X headset
1 X Hang Strap
1 X Belt Clip and Screw
1 X User's Manual
