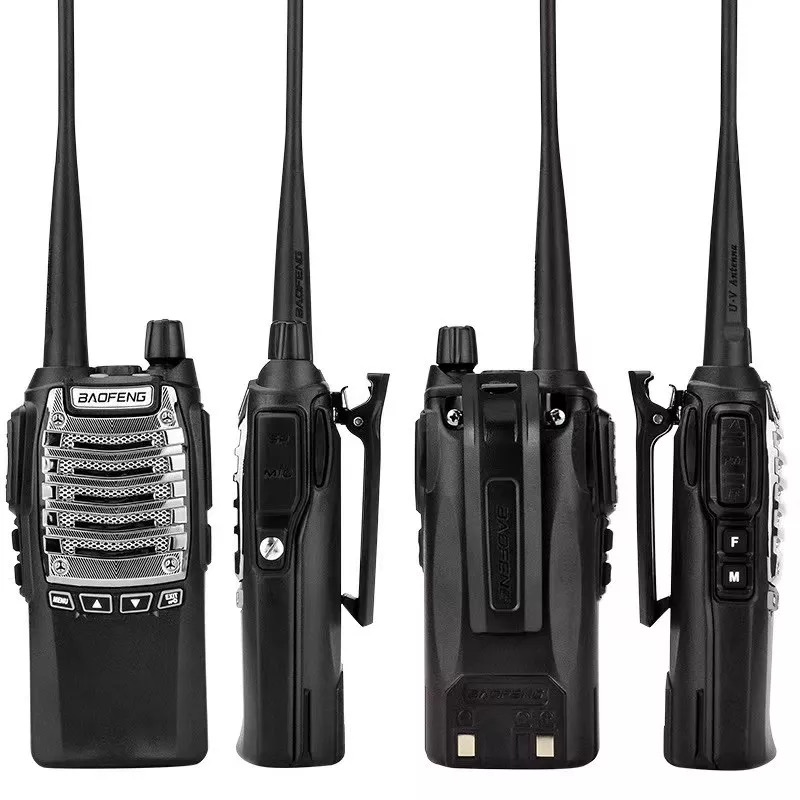

Baofeng UV-8D Overview

The Baofeng UV-8D is an upgraded version of the popular UV-5R series, featuring enhanced durability, improved battery life, and a ruggedized design. It operates on VHF (136–174 MHz) and UHF (400–520 MHz) bands, making it suitable for amateur radio, emergency communication, and commercial use .

Key Features

1.  Operation

VHF: 136–174 MHz

UHF: 400–520 MHz

Supports simultaneous RX (receive) on both bands (dual watch).

2. High Power Output

5W max transmit power (adjustable to 1W for battery saving).

3. 128 Programmable Channels

Memory channels with CTCSS/DCS tone support for privacy.

Alphanumeric channel naming for easy identification.

4. Rugged & Water-Resistant Design

IP55-rated (dust and water splash-resistant).

Reinforced casing for outdoor/emergency use.

5. Large Battery Capacity

2000mAh Li-ion battery (model: BL-8) for extended operation (~12–24 hours, depending on usage).

USB-C charging (cable included).

6. Enhanced Display & Interface

Backlit LCD with clear frequency/channel info.

Keypad lock to prevent accidental changes.

7. Additional Functions

FM Radio Receiver (76–108 MHz).

Built-in LED flashlight (handy for emergencies).

VOX (Voice-Activated TX) for hands-free operation.

Emergency alarm (sends a loud alert tone).

8. Antenna & Connectivity

Detachable SMA-Female antenna (upgradable).

3.5mm headset jack for external audio.

9. PC Programmable

Compatible with CHIRP software for easy channel programming.

Technical Specifications

• Modulation: FM (16K0F3E).

• Sensitivity: ≤0.2 μV (12dB SINAD).

• Dimensions: 120 × 60 × 35 mm (without antenna).

• Weight: ~250g (with battery).

• Operating Temp.: -20°C to +60°C (-4°F to +140°F).

Included Accessories

• BL-8 2000mAh battery

• USB-C charging cable

• Wrist strap

• Belt clip

• User manual

Usage Notes

Licensing: Requires an amateur radio license (e.g., FCC in the U.S.) for legal transmission on ham bands.

Range: ~1–10 km (line-of-sight; depends on terrain and antenna).

Compatibility: Works with other Baofeng models (UV-5R, UV-9G, etc.) and analog repeaters.

Pros

Higher battery capacity than UV-5R/UV-6D.

Rugged, water-resistant build.

USB-C charging (modern and convenient).

Conclusion

The Baofeng UV-8D is a robust, feature-packed HT ideal for hikers, preppers, and radio hobbyists needing a reliable dual-band radio with improved durability. Always check local regulations before use.
