📡 General Specifications

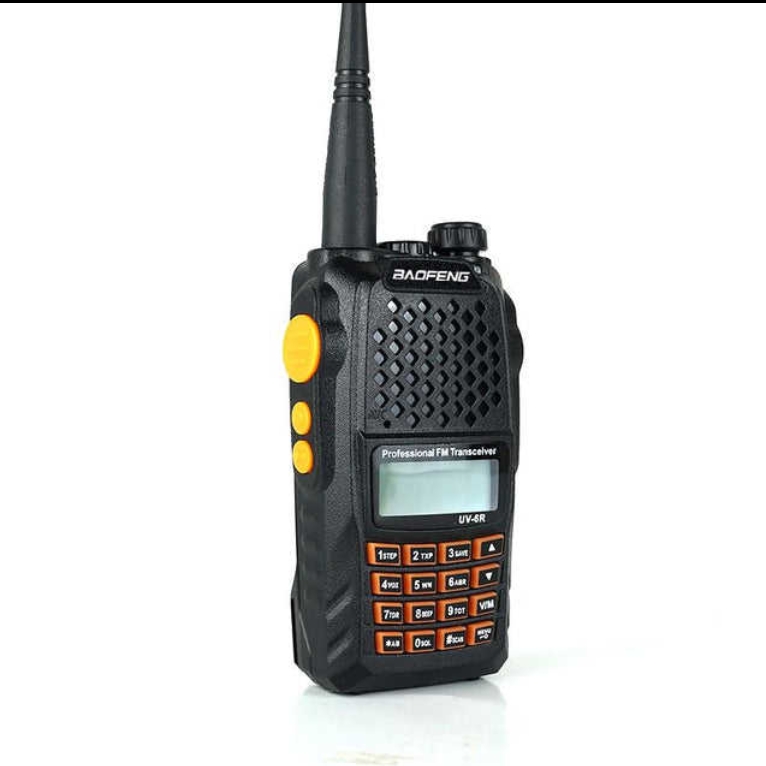

• Model: Baofeng UV-6R

• Frequency Range:

• VHF: 136–174 MHz (TX/RX)

• UHF: 400–520 MHz (TX/RX)

• FM Broadcast Band: 87.5–108 MHz (RX only)

• Channel Capacity: 128 programmable channels

• Channel Spacing: 2.5/5/6.25/10/12.5/25 kHz

• Operating Voltage: 7.4V DC (Li-ion battery)

🔋 Battery & Power

• Battery Type: 1200mAh Li-ion (removable)

• Battery Life:

• Standby: ~24–48 hours

• Talk Time: ~8–12 hours (depends on power setting)

• Charging Method: Desktop charger (included)

📶 Transmitter (TX) Performance

• Output Power:

• High: 5W (VHF), 4W (UHF)

• Low: 1W

• Modulation: 16KΦF3E (VHF), 11KΦF3E (UHF)

• Maximum Deviation: ≤5 kHz

• Spurious Emissions: ≤-60 dB

📡 Receiver (RX) Performance

• Sensitivity: ≤0.2 μV (12 dB SINAD)

• Adjacent Channel Selectivity: ≥60 dB

• Intermodulation: ≥60 dB

• Audio Output Power: ≥500 mW (8 Ω load)

🎛️ Functional Features

• Display: Backlit LCD (amber)

• Keypad: 16-key DTMF with keypad lock

• VOX (Voice Operated TX): Adjustable sensitivity

• Scan Modes: Channel, frequency, and tone scan

• CTCSS/DCS: 50 CTCSS tones / 104 DCS codes

• Emergency Alarm: SOS tone transmission

• LED Flashlight: White (adjustable modes)

📶 Antenna & Connectors

• Antenna: SMA-Female (detachable), includes 145mm stock antenna

• Audio Jack: 3.5mm for headset/external speaker-mic

• PC Programming: Requires USB programming cable (not included)

🛡️ Physical & Environmental

• Dimensions: 110 × 58 × 32 mm (without antenna)

• Weight: ~210g (with battery)

• Ingress Protection: IP55 (splash/dust resistant, not waterproof)

• Operating Temperature: -20°C to +60°C (-4°F to 140°F)

📦 Package Contents

• Baofeng UV-6R Handheld Transceiver

• 1200mAh Li-ion Battery

• Desktop Charger

• Stock Antenna

• Belt Clip

• User Manual (English)

⚠️ Regulatory Notes

• FCC Part 90 Certified (for licensed use in the U.S.).

• Ham/GMRS License Required for legal operation on amateur/GMRS frequencies.

• Not Legal for FRS (due to detachable antenna and power output).

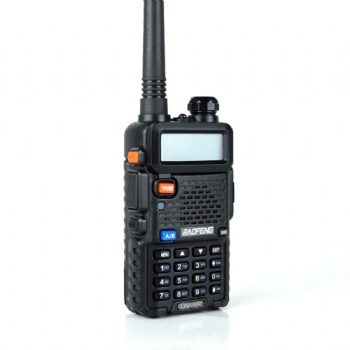

🔍 Key Advantages UV-6R  vs. UV-5R

✅ 20% Smaller/Lighter than UV-5R.
✅ Improved Battery (1200mAh vs. 1100mAh).
✅ Better Audio Clarity (upgraded speaker).
✅ IP55 Splash Resistance (UV-5R has no rating).

💡 Ideal Use Cases

• Amateur Radio (Ham): Requires FCC license.

• Outdoor Activities: Hiking, camping, or events.

• Emergency Comms: Backup communication during disasters.

Need help programming or comparing with other models (e.g., UV-5R, UV-9R)? Ask away!
