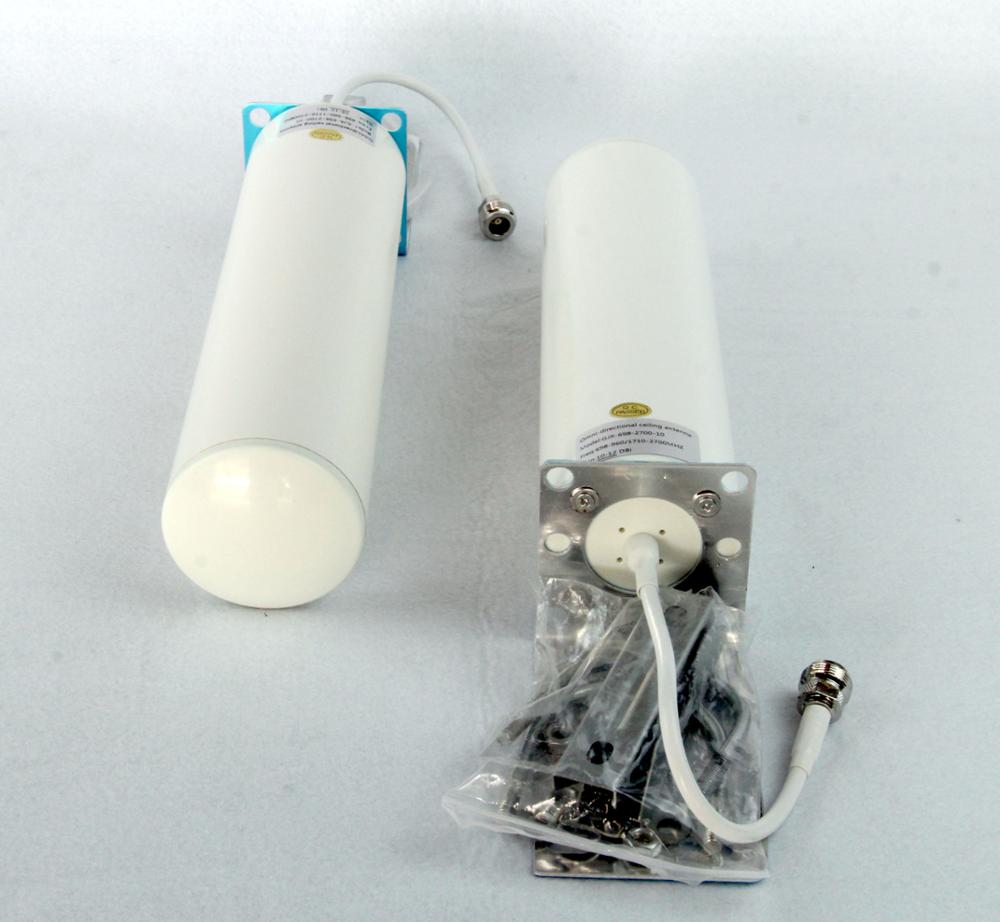

Waterproof Outdoor Omni Directional MIMO Antenna 2g 3g 4g LTEFiberglass Antennas
GSM 2G/3G/4G/LTE/WIFI Full Netcom Waterproof
1.Broad band, low PIM, low VSWR, high power.
2. Light weight and easy to install.
3.All weather operation,quality guarantee .
4. Weather-proof and corrosion Resistance
5. Apply to IEEE802.11b/g wireless lan & Public wireless hotspot.
6. Heavy-Duty Stainless Steel Mounting Brackets.
| Electrical specifications | |
| Frequency range(MHz) | 698-2100-2700Mhz |
| Impedance | 50 Ω |
| V.S.W.R | ≤1.5 |
| Gain | 13DBi |
| Polarization type | Vertical or Horizontal |
| Power Capacity (w) | 50 W |
| Horizontal Beamwidth | 360°C |
| Vertical Beamwidth | 10±2°C |
| F/B ratio | ≥5 dbi |
| Lightning protection | DC ground |
| Mechanical specifications | |
| connector | SMA or customized |
| Color | white |
| Radome Material | Waterproof Fiberglass |
| Radiating Material | Cu or stainless steel |
| Cable length | Depend on your request |
| Dimension | Ø63× 240 mm |
| Weight (kg) | 0.35-1.5kg |
| Operating Temp(°C) | "-40°C~+70°C" |
