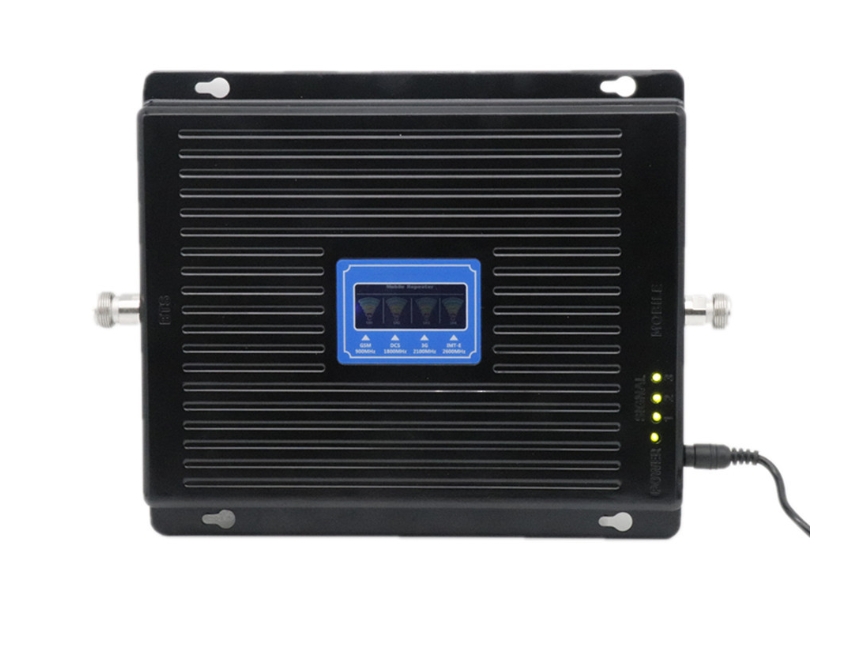

Quad-Band Cellular Signal Booster Amplifier (900/1800/2100/2600 MHz) - Technical Specifications

1. System Overview

A high-performance 4G/LTE & 5G-ready signal booster supporting:

• 900 MHz (Band 8) - 2G GSM & 4G LTE

• 1800 MHz (Band 3) - Primary 4G LTE

• 2100 MHz (Band 1) - 3G UMTS & 4G LTE

• 2600 MHz (Band 7) - 4G LTE-Advanced & 5G NSA

2. Technical Specifications

Frequency Bands & Protocols Supported

Amplification Performance

• Gain: Up to 70 dB (adjustable via AGC)

• Output Power: 20-25 dBm (100 mW) per band

• Noise Figure: < 3 dB (minimal signal degradation)

• Delay: < 5 μs (low latency)

• Bandwidth:

• 900 MHz: 80 MHz

• 1800 MHz: 170 MHz

• 2100 MHz: 250 MHz

• 2600 MHz: 190 MHz

Coverage & Capacity

• Indoor Coverage: Up to 800 sq. ft. (depends on building materials)

• Max Simultaneous Users: 10-15 devices

• Data Speed Improvement: Up to 300% faster (varies by network)

Antenna System

• Outdoor Antenna:

• Type: Directional Yagi  or Log periodic antennna (10-14 dBi) or Omni-directional (8 dBi)

• Weatherproof Rating: IP65

• Lightning Protection: Integrated surge suppressor

• Indoor Antenna:

• Type: Panel (8dBi) or Dome (3 dBi)

• Mounting: Ceiling/wall/desktop

Power & Connectivity

• Input Voltage: 100-240V AC

• Cable Type: Low-loss LMR-400 coax

• Max Cable Length: 20 meters (minimal signal loss)

Smart Features

• Automatic Gain Control (AGC): Prevents oscillation & over-amplification

• Self-Diagnosis: LED indicators for power, signal strength, and faults

• Thermal Protection: Auto-shutdown at > 60°C

Applications
✔ Residential: Homes, basements, rural areas
✔ Commercial: Offices, hotels, hospitals
✔ Industrial: Warehouses, factories, underground parking

Installation Notes:

• Requires 30 dB+ isolation between outdoor & indoor antennas

• Carrier approval may be required in some regions

(For optimal performance, a professional site survey is recommended.)

Would you like additional details on installation or compatible carriers? PM us!
