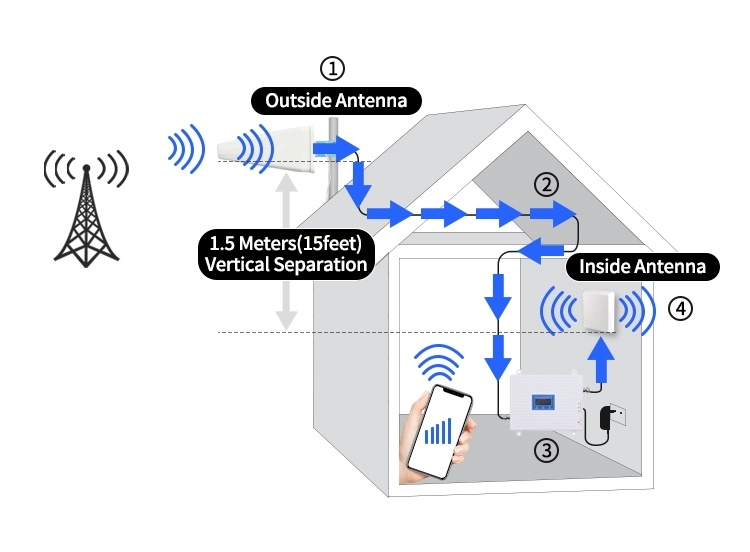

Key Components:

1. Outdoor Antenna – Captures weak signals from cell towers.

2. Amplifier – Boosts the signal strength.

3. Indoor Antenna – Rebroadcasts the enhanced signal inside a building or vehicle.

Benefits:

Better call clarity & fewer dropped calls.

Faster 4G/5G data speeds.

Extended coverage in weak-signal areas (homes, offices, cars).

Common Uses:

Rural areas, basements, large buildings, vehicles.

Note: Must be compatible with carrier frequencies and comply with local regulations.Tri-Band (900/1800/2100 MHz) Mobile Signal Booster – Detailed Specifications

General Specifications:

Frequency Bands Supported:

900 MHz (GSM/3G/4G LTE Band 8)

1800 MHz (4G LTE Band 3)

2100 MHz (3G/4G LTE Band 1)

 Compatible Networks: 2G (GSM), 3G (UMTS/HSPA), 4G LTE

• Gain: 60~70 dB (typical)

• Maximum Output Power: 25 dBm (100 mW) (varies by model)

• Coverage Area: Up to 500~800sq. ft. (depends on signal strength & obstacles)

• Noise Figure: ≤ 5 dB (ensures minimal signal degradation)

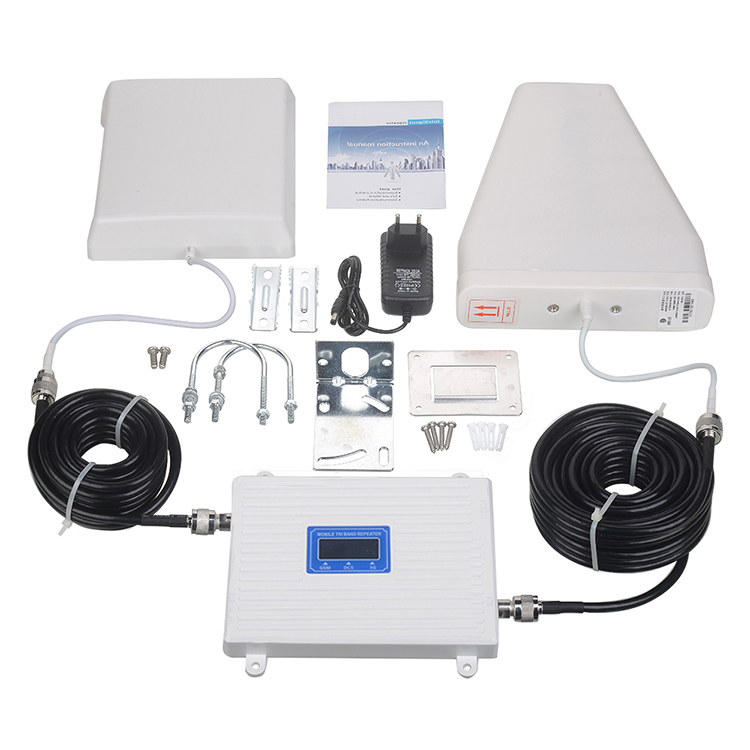

Components:

1. Outdoor Antenna (Donor Antenna):

• Type: Directional Yagi or Omni-directional or log periodic antenna

• Gain: 8~14dBi

• Impedance: 50 Ω

• Connector: N-type or SMA

2. Indoor Antenna (Broadcast Antenna):

• Type: Panel or Dome antenna or Omni- directional antenna

• Gain: 3~8 dBi

• Impedance: 50 Ω

• Connector: N-type or SMA

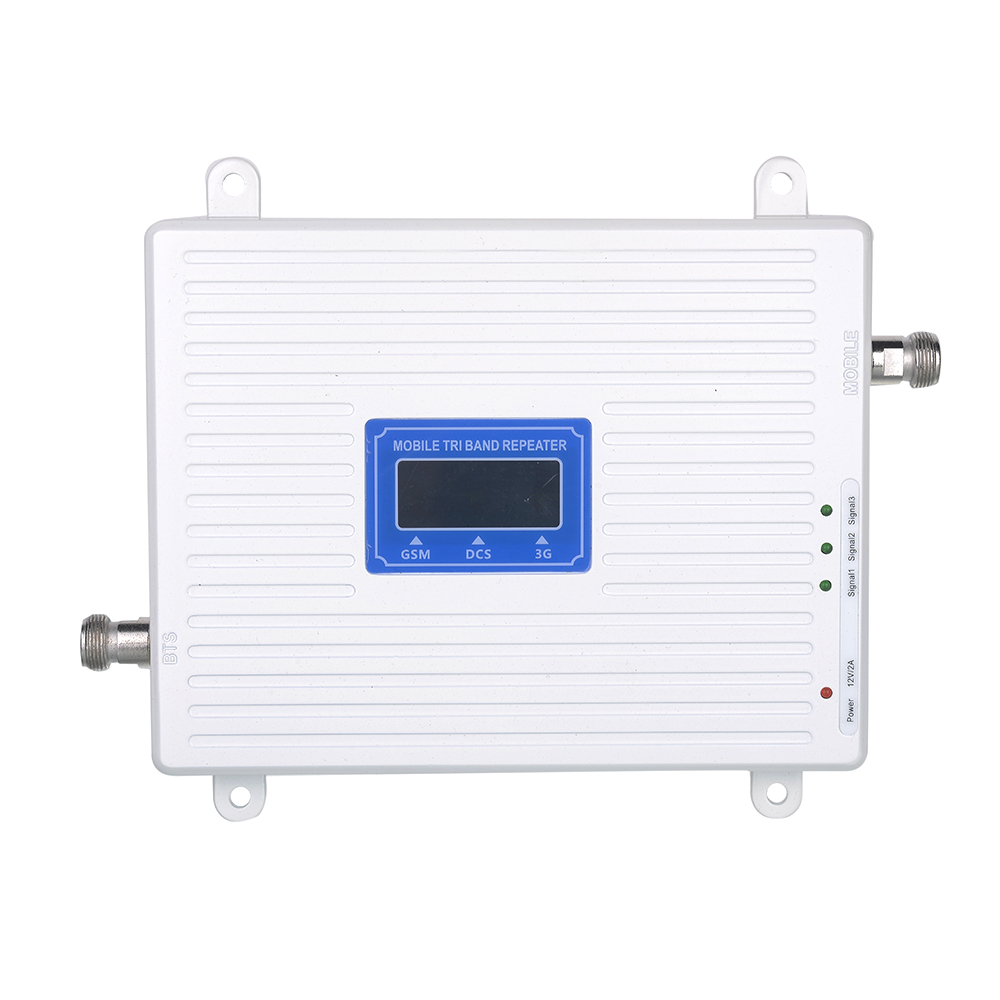

3. Amplifier Unit:

• Automatic Gain Control (AGC): Prevents oscillation & over-amplification

• Self-Oscillation Protection: Ensures stable performance

• LED Indicators: Signal strength, power status

Power & Connectivity:

• Power Supply: AC 110-240V (with adapter) or DC 12V

• Cable Type: Low-loss coaxial (RG6/RG58)

• Cable Length: 10~20 meters (varies by kit)

Additional Features:

• Carrier Compatibility: Works with major providers

• Plug-and-Play Setup: No software configuration needed

Typical Applications:

• Homes, offices, basements

• Warehouses, remote buildings

• Vehicles (with appropriate mobile booster kit)

Would you like recommendations for specific models or installation tips?

OEM & ODM are accepted.
