1. General Specifications

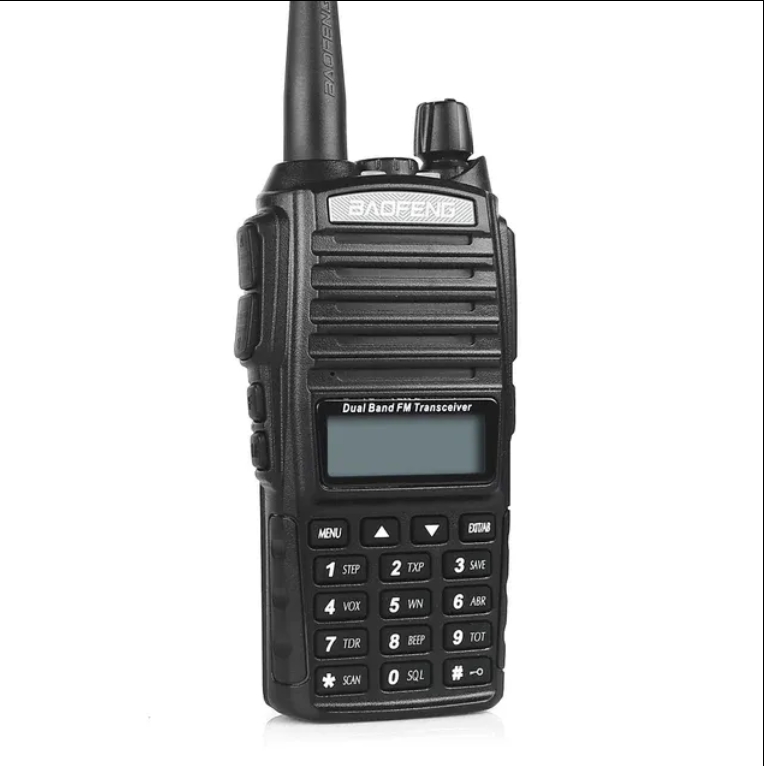

• Model: Baofeng UV-82

• Type: Handheld Dual-Band Transceiver

• Color Options: Black/Camo/Army Green

• Dimensions: 138 × 58 × 37mm

• Weight: 290g (with battery & antenna)

2. Frequency Characteristics

• Frequency Range:

  VHF: 136-174 MHz

  UHF: 400-520 MHz

• Dual-Band Operation: Simultaneous monitoring of two frequencies

• Channels: 128 programmable channels

• Step Size: 2.5/5/6.25/10/12.5/25 kHz

3. Transmission Performance

• Output Power:

  High: 5W

  Low: 1W

• Modulation: 16KΦF3E (FM)

• Maximum Deviation: ±5 kHz

• Spurious Emissions: ≤7.5 μW

4.Reception Performance

• Sensitivity: ≤0.16 μV (12dB SINAD)

• Adjacent Channel Selectivity: ≥60 dB

• Intermodulation Rejection: ≥50 dB

• Audio Output Power: ≥1W (8Ω load)

5. Functional Features

• Dual PTT Buttons: Independent VHF/UHF transmission control

• CTCSS/DCS: 50 CTCSS tones / 105 DCS codes

• VOX (Voice-Activated Transmission): Adjustable sensitivity

• Emergency Features:

• SOS alarm function

• High-intensity LED flashlight

• Additional Functions:

• Low battery alert

• Time-Out Timer (TOT)

• Channel/Frequency scanning

6. Power System

• Battery: 7.4V 1800mAh Li-ion

• Battery Life:

• High Power: ~12 hours

• Low Power: ~20 hours

• Charging Options: Desktop charger/USB charging (varies by model)

7. Physical & Environmental

• IP Rating: IP54 (Dust/splash resistant)

• Antenna Connector: SMA-Female

• Operating Temperature: -20°C to +60°C

8. Compliance & Notes

• Certification: FCC Part 15B (Rx only; transmission requires amateur radio license in some regions).

• Not compliant with FRS/GMRS frequencies without modification.

• Popular for: Amateur radio, outdoor adventures, security teams, and emergency preparedness.

Key Advantages:

• Higher 5W output vs. UV-5R (4W)

• Dual PTT buttons for band-specific control

• Enhanced audio clarity and durability

9. Package Contents

• UV-82 Handset ×1

• 1800mAh Li-ion Battery ×1

• Antenna ×1

• Belt Clip ×1

• Desktop Charger ×1

• User Manual ×1
