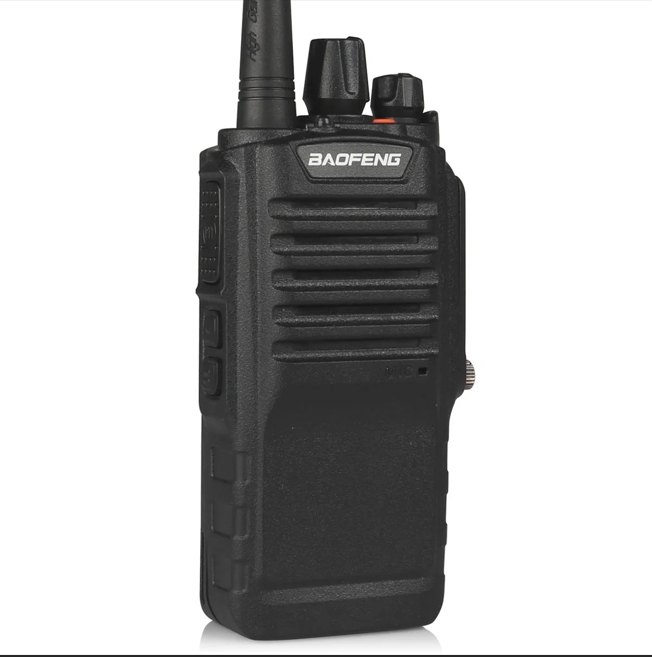

Baofeng BF-9700 Dual-Band Two-Way Radio - Technical Specifications

Key Advantages:

• Enhanced 2000mAh battery for extended operation

• Rugged IP54-rated construction

• Professional-grade 5W transmission power

• Comprehensive scanning and programming capabilities

1. General Specifications

• Model: Baofeng BF-9700

• Type: Professional Dual-Band Handheld Transceiver

• Dimensions: 120 × 60 × 35mm (without antenna)

• Weight: 280g (with battery)

• Color Options: Black/Yellow

2. Frequency Specifications

• Frequency Range:

• VHF: 136-174MHz

• UHF: 400-520MHz

• Dual-Band Operation: Simultaneous VHF/UHF monitoring

• Channel Capacity: 128 programmable channels

• Channel Spacing: 25kHz/12.5kHz

3. Transmission Performance

• Output Power:

• High: 5W

• Medium: 2W

• Low: 1W

• Modulation: 16K0F3E (FM)

• Frequency Stability: ±2.5ppm

• Spurious Emissions: ≤-65dB

4. Receiver Performance

• Sensitivity: ≤0.2μV (12dB SINAD)

• Adjacent Channel Selectivity: ≥65dB

• Intermodulation Rejection: ≥60dB

• Audio Output Power: ≥1W (at 10% distortion)

5. Power System

• Battery: 2000mAh Li-ion (7.4V)

• Battery Life:

• High Power (5W): Approx. 10-12 hours

• Low Power (1W): Approx. 18-20 hours

• Charging Time: 4-5 hours (standard charger)

6. Advanced Features

• Dual-Band Display: Simultaneous frequency monitoring

• CTCSS/DCS: 50 CTCSS tones/104 DCS codes

• VOX Function: Adjustable sensitivity (1-5 levels)

• Emergency Features:

• SOS emergency alarm

• High-intensity LED flashlight

• Scanning Functions:

• Channel scan

• Frequency scan

• CTCSS/DCS scan

7. Physical Characteristics

• Display: Backlit LCD with dual-frequency display

• Keypad: 16-button with programmable function keys

• Connectors:

• SMA-Female antenna connector

• 3.5mm earphone/mic jack

• IP Rating: IP54 (dust and splash resistant)

• Operating Temperature: -20°C to +60°C

8. Compliance & Certification

• FCC Part 15B Certified (receive only)

• CE Certified

• RoHS Compliant

9. Applications

• Commercial/Industrial Communication

• Security Services

• Outdoor Adventures

• Emergency Preparedness

• Event Management

10. Package Contents

• BF-9700 Main Unit ×1

• 2000mAh Li-ion Battery ×1

• Antenna ×1

• Belt Clip ×1

• Desktop Charger ×1

• Hand Strap ×1

• User Manual ×1
